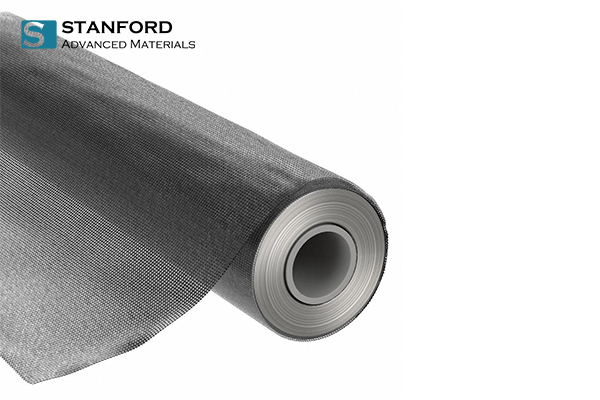

Titanium meshes are made from stamping titanium sheets, which are ASTM B265 specified commercial pure titanium sheets since the strength of alloyed titanium is too high to be stamped into meshes. The width and length of the meshes we can provide will be the same as the sheets.
Titanium has two most useful properties, unique corrosion resistance and the highest strength-to-weight ratio of any metal. Titanium materials can be used in many fields, such as chemical and electronic industries. Titanium meshes are mostly used as anodes and filter elements in chlor-alkali industry and other chemistry industries.
Specifications:
| Name | Titanium Mesh |
| Material | Gr1, Gr2 (CP Titanium) |
| Processing | Stamping |
Dimensions (For Diamond Meshes):
| Sheet Thickness | Width x Length | Mesh Open Size | Mesh Stem |
|
0.3mm ~0.8mm 0.8mm~2.0mm |
1000mm x 2000mm
1000mm x 3000mm |
50mm x 25mm | 2.0mm |
| 20mm x 10mm | 2.0mm | ||
| 20mm x 7mm | 2.0mm | ||
| 16mm x 8mm | 1.5mm-2.0mm | ||
| 15mm x 5.5mm | 1.5mm-2.0mm | ||
| 13mm x 7mm | 1.5mm-2.0mm | ||
| 12.5mm x 4.5mm | 1.5mm-2.0mm | ||
| 12.5mm x 6mm | 1.5mm-2.0mm | ||
| 10mm x 5mm | <1.0mm | ||
| 8mm x 5mm | <0.8mm | ||
| 6mm x 3mm | <0.6mm | ||
| 4.6mm x 2.5mm | <0.6mm | ||
| 4mm x 3mm | <0.3mm | ||
| 3mm x 2mm | <0.3mm |
Other mesh open sizes can be customized. We can also provide the square and rectangle meshes beside the diamond meshes.
