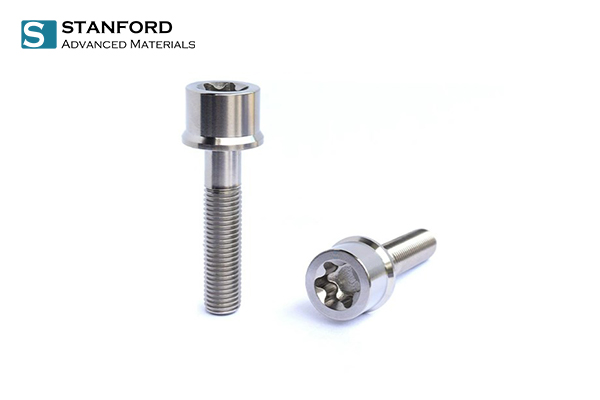

Applications: Due to their high strength-to-weight ratios and excellent corrosion resistance ability, Titanium fasteners are widely used in many areas including the racing industry such as racing motorcycles/cars and sailing boats, medical equipment, the manufacturing industry, and others. If assembled with titanium fasteners, an aircraft’s whole weight may be reduced by hundreds to thousands of pounds.
Types: bolts, threaded studs, washers, screws, nuts
Standard: DIN, ISO, JIS, BS
MOQ: 50pcs
| Standard | Description | Standard | Description |
|---|---|---|---|
|
DIN 84 |
slotted cheese head screws |
DIN 439 |
jam nuts |
|
DIN 125 |
flat washers |
DIN 963 |
slotted countersunk flat head screws |
|
DIN 127 |
spring lock washers |
DIN 965 |
Phillips flat head machine screws |
|
DIN 912 |
hex socket head cap screws |
DIN 985 |
lock nuts (with non-metallic insert) |
|
DIN913/DIN 914/DIN915/DIN916 |
set screws |
DIN 1665/DIN 6921 |
hex bolts with flange |
|
DIN 931 |
hex head cap screws (part thread) |
DIN 6912/DIN 7984 |
hexagon socket thin head cap screws |
|
DIN 933 |
hex head cap screws (full thread) |
DIN 7991 |
flat head countersunk socket cap screws |
|
DIN 934 |
hex nuts |
DIN 9021 |
flat washer |
Specifications:
| Product | Titanium and Titanium alloy bolt |
|---|---|
| Size | Diameter: M5-M24, Length: 10mm-300mm (0.39″-11.8″) |
| Material | Gr.1, Gr.2, Gr.5, Gr.7 |
| Standard | DIN912, DIN6912, DIN933, DIN931 |
Specifications:
| Product | Titanium and Titanium alloy threaded stud |
|---|---|
| Size | Diameter: M5-M24, Length: 10mm-300mm (0.39″-11.8″) |
| Material | Gr.1, Gr.2, Gr.5, Gr.7, Gr.23 |
| Standard | DIN912, DIN933, DIN7991, DIN7984, DIN6921, ISO 7380, JIS, BS, etc. |
Specifications:
| Product | Titanium and Titanium alloy washer |
|---|---|
| Size | OD: 5mm-200mm (0.20″-7.87″), ID: 1mm-100mm (0.04″-3.94″), Thickness: 0.1mm-30mm (0.004″-1.18″) |
| Material | Gr.2, Gr.5 |
| Standard | DIN125 |
Specifications:
| Product | Titanium and Titanium alloy screw |
|---|---|
| Size | M1 to M42, Length: 10mm-300mm (0.39″-11.8″) |
| Material | Gr1, Gr.2, Gr.5, Gr.7, Gr.12 |
| Standard | DIN912, DIN933, DIN84, DIN85, DIN963, DIN7991, DIN6912, DIN931, ISO7380, etc. |
Specifications:
| Product | Titanium and Titanium alloy nut |
|---|---|
| Size | M3-M22 |
| Material | Gr1, Gr2, Gr5, Gr7, Ti6Al4V ELI |
| Standard | DIN, ISO, JIS, etc. |
